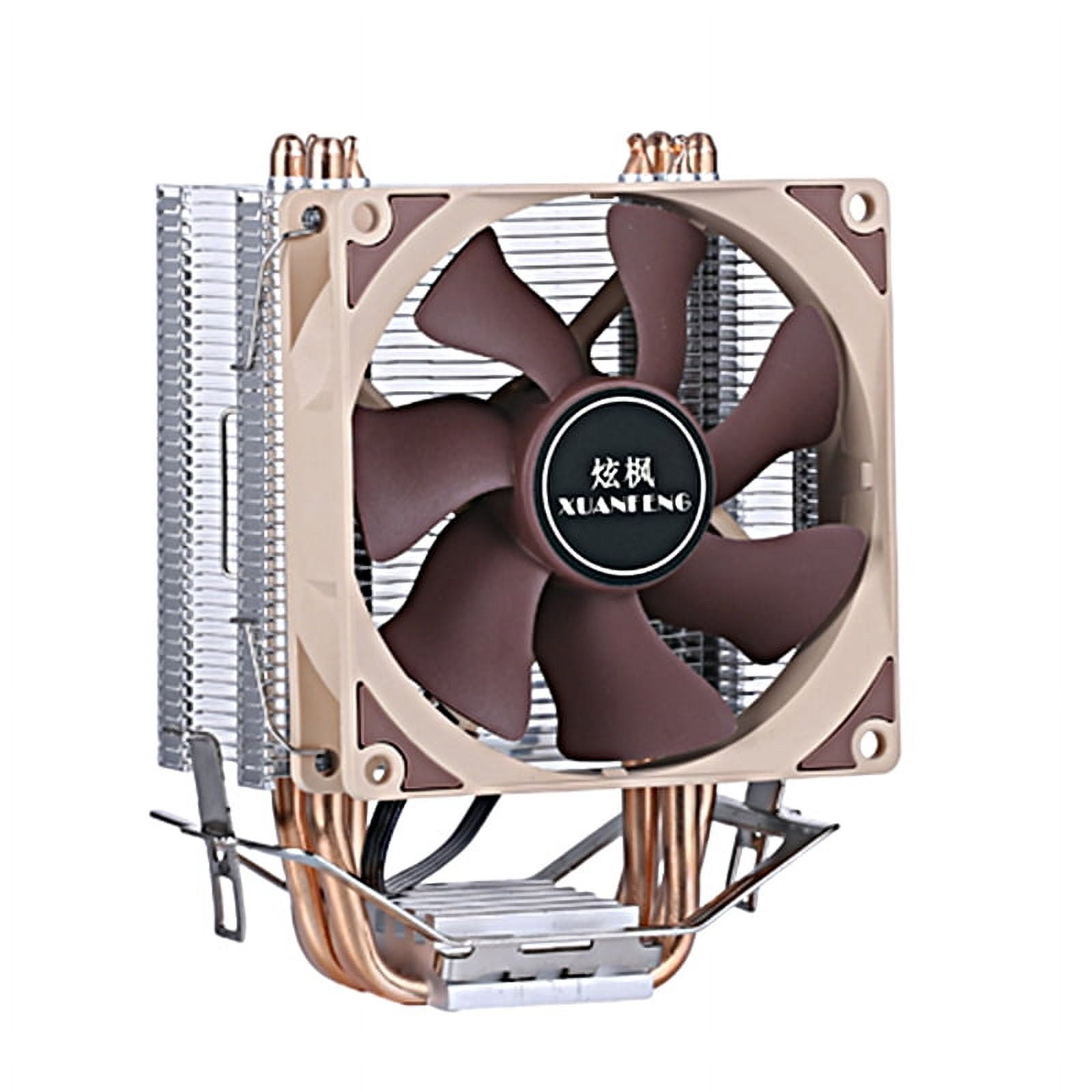

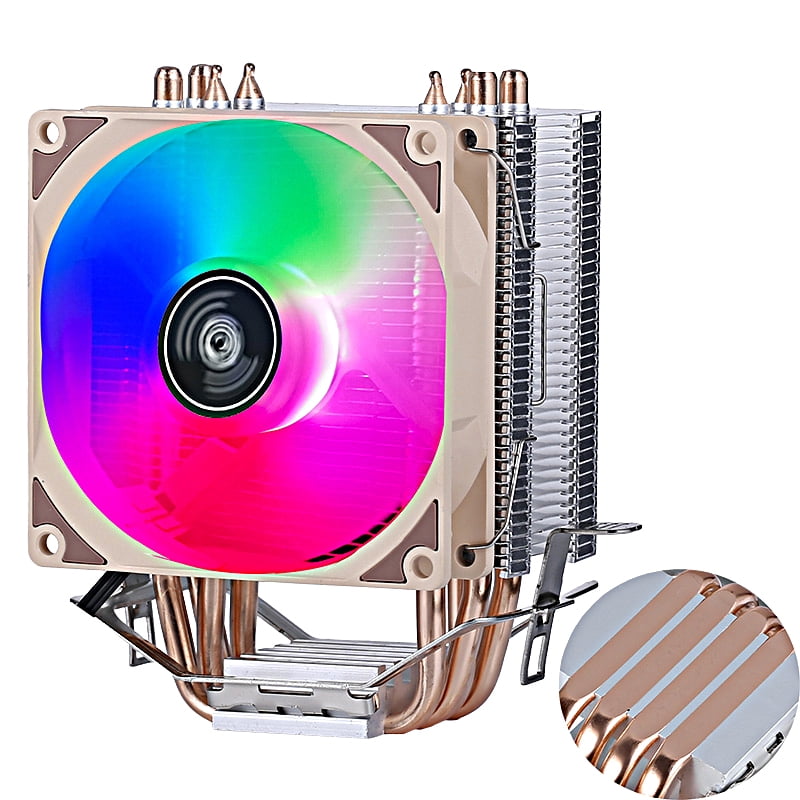

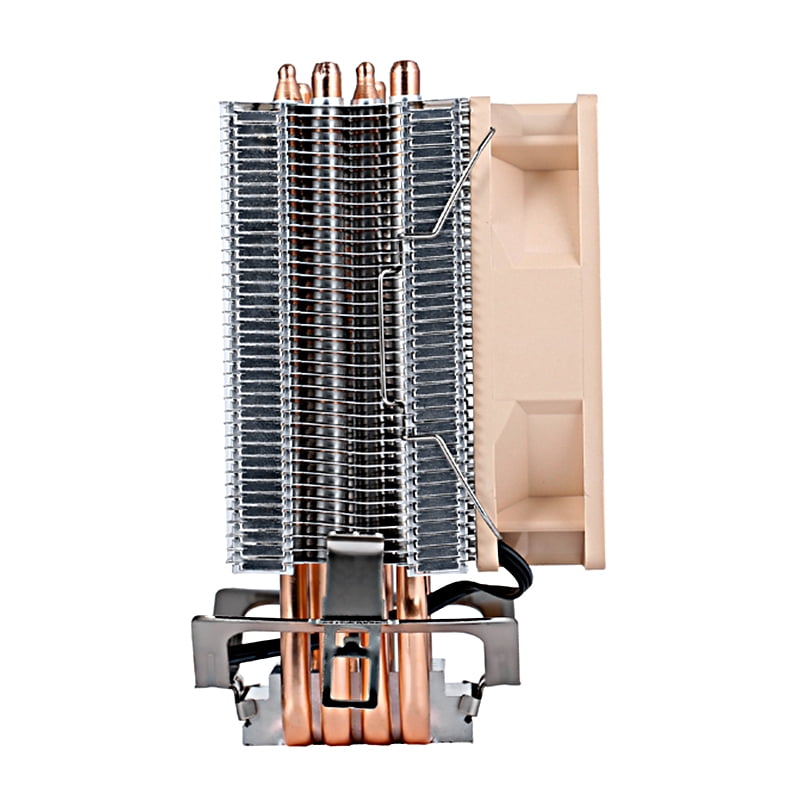

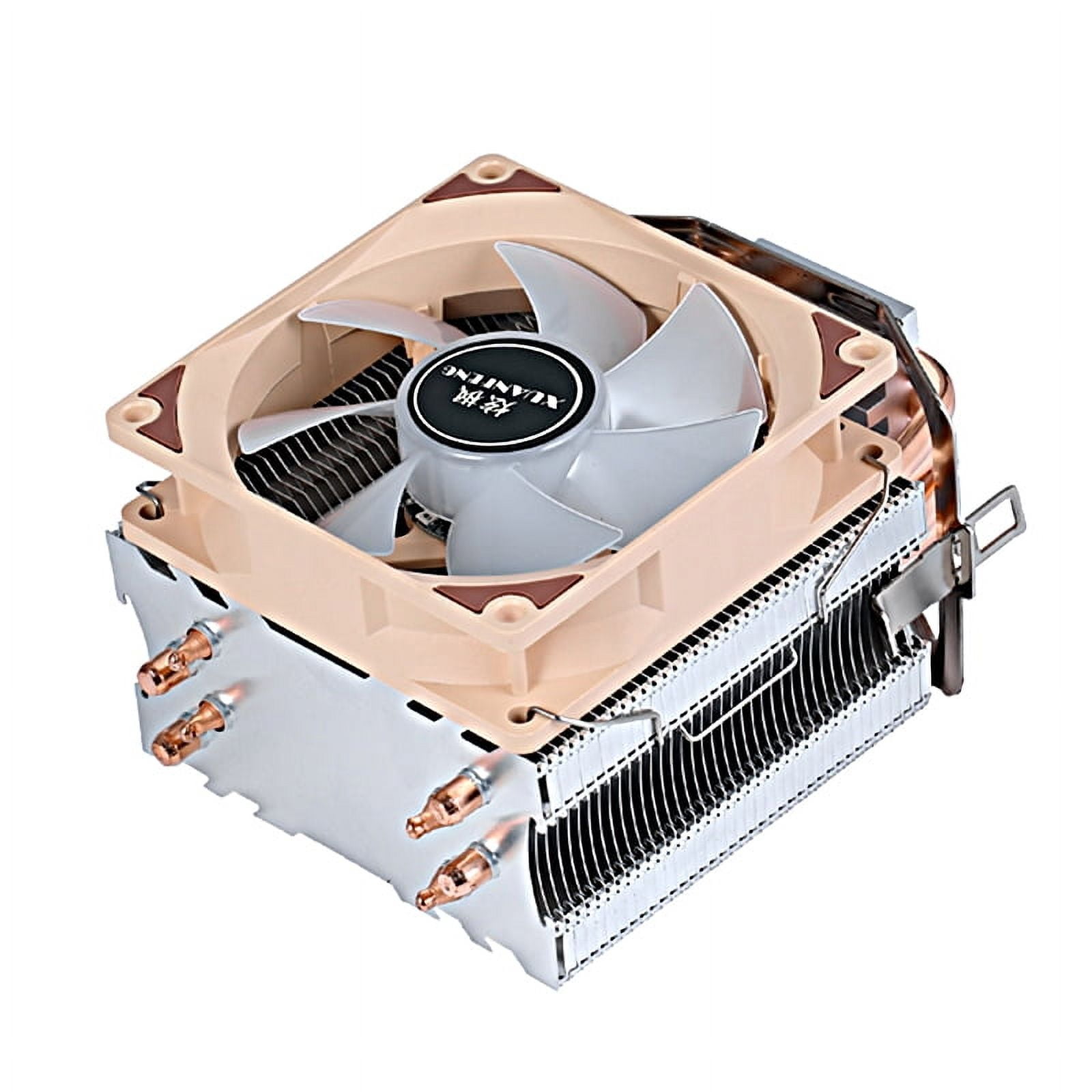

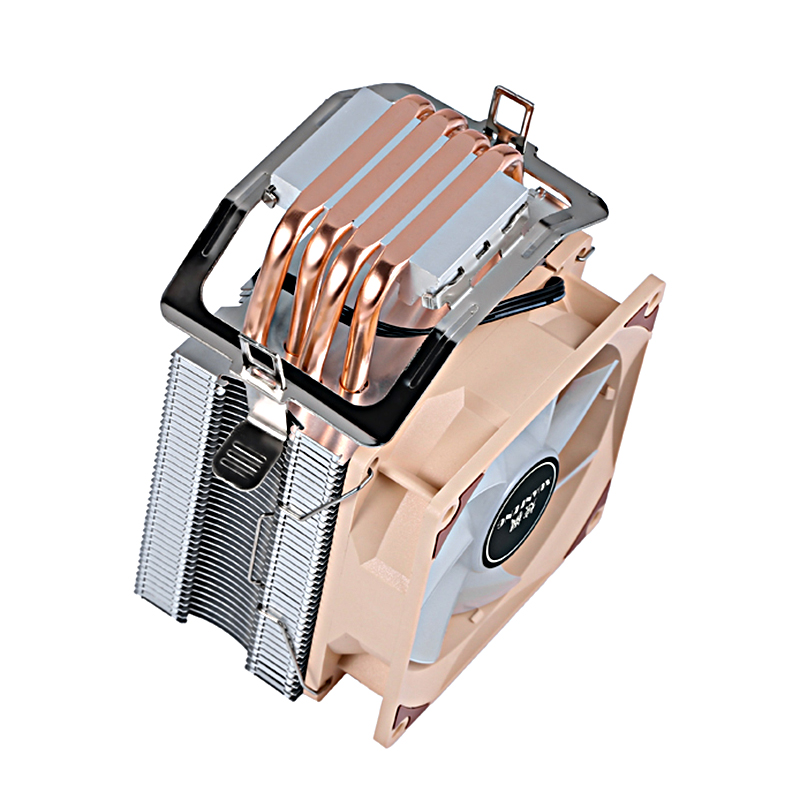

CPU Cooling Fan Efficient Cooler 4 Heat Pipe Radiator PC Air-cooled Suitable For Installing LGA2011 2066 x79 x99 2099 e5 e3 AMD

<p>Product brand: XUANFENG<br><br></p> <p>Product name: CPU cooler fan<br><br></p> <p>Product size: 90 (length) * 73 (width) * 135 (height) mm<br><br></p> <p>Fan size: 90 * 90 * 25mm<br><br></p> <p>Heat pipe specification: 6mm * 4 pieces<br><br></p> <p>3-wire speed: 2000 RPM ± 10%<br><br></p> <p>4-wire speed: 800-2000 RPM ± 10%<br><br></p> <p>3-wire current: 0.18A without lamp, 0.28A with lamp ± 10%<br><br></p> <p>4-wire current: 0.1A without lamp, 0.2A with lamp ± 10%<br><br></p> <p>3-wire power: 2W without light, 3.5W with light ± 10%<br><br></p> <p>4-wire power: 1W without light, 2.5W with light ± 10%<br><br></p> <p>Noise control: 25dBA<br><br></p> <p>Air volume: 60CFM (maximum)<br><br></p> <p>(The above data is for one fan. If there are multiple fans (air volume, noise, current, power), the data will increase.)<br><br></p> <p>Fan bearings: hydraulic bearings<br><br></p> <p>Working voltage: DC 12V<br><br></p> <p>Process materials: copper and aluminum<br><br></p> <p>Working life: 50000 hours<br><br></p> <p>Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)<br><br></p> <p>Fan wire length: 30CM ± 10%<br><br></p> <p>Packaging method: boxed<br><br></p> <p>Pure aluminum base combined with 4 pure copper heat pipes for efficient heat dissipation. Solve high temperature issues and make your computer smoother. Super silent fan. Hydraulic bearings reduce friction resistance and effectively reduce noise. Multi platform design, easy installation.<br><br></p> <p>Note:<br><br></p> <p>Due to manual measurement, different measurement methods and tools, there may be slight dimensional deviations.<br><br></p> <p>Due to differences in lighting, angle, and display, images may not reflect the actual color of the item<br><br></p> <p>The following is an installation tutorial video for this product, hoping to be helpful to you. The products installed in the video are for reference only, but the installation method is the same.<br><br></p> <p><br><br></p> <p>Socket:<br><br></p> <p>For Intel: LGA2011 2066 x79 x99 E5E3 x299 2099 <br><br></p> <p>For AMD: AM4/AM2+/AM2/AM3+/FM1/FM2/FM2+<br><br></p> <p>(For AMD, the bracket on the motherboard needs to be retained, just attach the cooler.)<br><br></p> <p>The following is a tutorial on installing a CPU cooling fan. The product in the picture may be different from the one you purchased, but the installation method is the same.<br><br></p> <p>1. As shown in the figure, suitable for installation: LGA: 2011, 2066, 2099, X79, X99, X299, E3, E5, etc.<br><br></p> <p>2. As shown in the figure, place the bracket in the hole on the motherboard, take out the screw, and tighten it.<br><br></p> <p>3. As shown in the figure, complete the screw tightening.<br><br></p> <p>4. As shown in the figure, open the thermal conductive silicone grease and evenly apply it to the surface of the CPU.<br><br></p> <p>5. As shown in the figure, remove the protective film at the bottom of the radiator before installation.<br><br></p> <p>6. As shown in the figure, align the card slot on the bracket and press the buckle.<br><br></p> <p>7. As shown in the figure, align the card slot on the bracket and press the buckle.<br><br></p> <p>8. As shown in the figure, there is no need to worry about different interfaces for CPUFAN. 3Pin/4Pin universal.<br><br></p> <p>9. As shown in the figure, the blue arrow represents the air inlet, and the red arrow represents the air outlet.<br><br></p> <p>10. As shown in the figure, the installation is completed.<br><br></p> <p></p>
